Metallic Mirror

Metallic Mirror

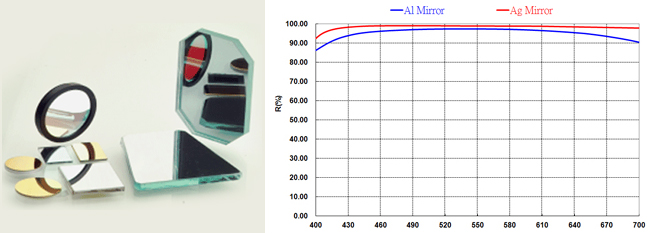

Metallic Mirror has the dielectric layers over the metal layer. The dielectric layer is used to protect the coating from oxidized in air or from scratched and to increase reflectance. The dielectric layer can increase reflectance of the particular wavelength. Metallic Mirror has high reflection in broad wavelength from 0.4 um to 20 um.

FEATURES

  • UV-enhanced Aluminum Mirror
    R＞85%@200-400nm
  • Protecd Aluminum Mirror
    R＞93%@400-700nm
    R＞95%@700-IR
  • Protected Silver Mirror
    R＞98%@450nm-IR
  • Protected Gold Mirrors
    R＞99%@2μm-FIR

GENERAL SPECIFICATION

  • Substrate : Optical glass
  • Coating Quality : MIL-M-13508

TYPICAL APPLICATIONS

  • Optical Instruments
  • Measuring Instrument
  • Projection, Pico Projection Display System
  • Lighting
  • Bar Code Reader
  • Laser Scanner
